Custom Purifying Type Two-Way Flow Blower

Home / Product / Fresh Air Fans / Purifying Type Two-Way Flow Blower
Purifying Type Two-Way Flow Blower

Purifying Type Two-Way Flow Blower

The Purifying Type Two-Way Flow Blower is an advanced air handling unit designed to provide both efficient ventilation and air purification. This blower is equipped with a dual-direction airflow system, allowing it to serve as both an intake and exhaust fan, depending on the needs of the environment. It also incorporates a built-in air purification system to remove dust, allergens, and other airborne contaminants, ensuring the air is not only circulated but also purified. Ideal for both residential and commercial applications, this blower is engineered to maintain a healthy indoor air quality while ensuring efficient airflow management.

Inquiry

Advantages of the Purifying Type Two-Way Flow Blower
Dual-Function Airflow System
The Purifying Type Two-Way Flow Blower provides flexibility by allowing users to switch between two airflow directions: intake and exhaust. This feature makes it versatile in various environments, as it can both introduce fresh air into a space and remove stale or polluted air. This capability is particularly useful in situations where controlling indoor air quality and ventilation is critical.

Integrated Air Purification
One of the standout benefits of this blower is its integrated air purification system. With a built-in multi-stage filter, the blower helps remove dust, allergens, and harmful particles from the air. This ensures that the air circulating through the space is not only fresh but also clean, providing health benefits for those with respiratory issues or allergies.

Low Noise Levels
Despite its powerful airflow and purification capabilities, the blower operates with minimal noise. Thanks to advanced design and noise-reducing components, it ensures quiet performance even at higher speeds. This makes it suitable for noise-sensitive areas, such as offices, bedrooms, hospitals, or libraries, where a quiet environment is essential.


Features of the Purifying Type Two-Way Flow Blower

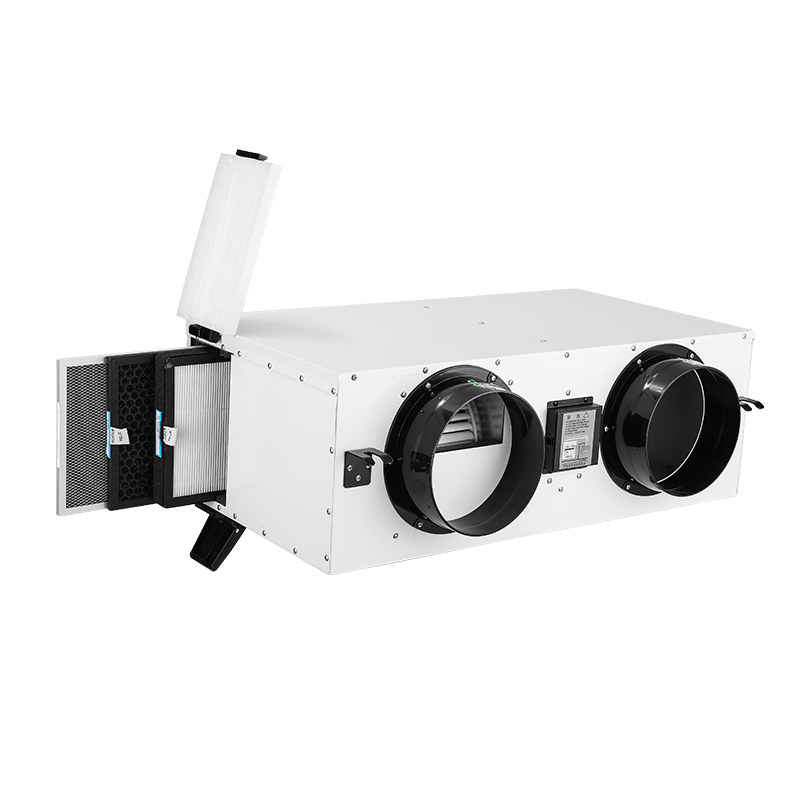

Multi-Stage Filtration System
The blower’s purification system includes a multi-stage filter that effectively captures large particles, fine dust, allergens, and even odors. The filtration typically consists of a pre-filter, HEPA filter, and activated carbon filter, each stage designed to target specific contaminants. This system ensures that the air circulating through the space is as clean and fresh as possible.

Reversible Airflow Functionality
The blower’s motor allows for easy reversal of airflow, making it adaptable to different ventilation needs. In the intake mode, the blower brings fresh air into a space, while in exhaust mode, it removes stale air, moisture, or pollutants. This reversible airflow functionality helps optimize air quality by responding to the specific needs of the environment, whether it's for cooling, ventilation, or air purification.

Adjustable Speed Settings
The blower is equipped with multiple speed settings, allowing users to adjust the airflow to match the specific requirements of the space. Whether a high airflow is needed for quick ventilation or a low-speed operation is desired for continuous air circulation, the adjustable speeds give users full control over performance. This flexibility enhances energy efficiency by ensuring that the blower only operates at the necessary intensity.

Compact and Space-Saving Design
The Purifying Type Two-Way Flow Blower is designed to fit into a variety of spaces without taking up too much room. Its compact size makes it suitable for both large open areas and smaller, confined spaces. The blower can be easily installed in walls, ceilings, or ducts, making it a versatile solution for spaces where conventional air handling units may not fit.

MODLE

RATED VOLTAGE

FREQUENCY

MAX AIR VOLUME

WIND PRESSURE

OUTLET SIZE

MAX POWER

NOISE LEVEL

WEIGHT

SIZE

JCSLH-350

220V

50Hz

350m³/h

132Pa

150mm

70W

≤29dB(A)

15KG

69*32*23cm³

JCSLH-500

220V

50Hz

500m³/h

180Pa

150mm

120W

≤31dB(A)

17KG

69*32*23cm³

JCSLH-880

220V

50Hz

880m³/h

205Pa

200mm

180W

≤33dB(A)

27KG

75*40*28cm³

JCSLH-1000

220V

50Hz

1000m³/h

295Pa

200mm

250W

≤35dB(A)

28.4KG

75*40*28cm³

JCSLH-1200

220V

50Hz

1200m³/h

385Pa

200mm

370W

≤42dB(A)

46KG

100*52*30cm³

JCSLH-1500

220V

50Hz

1500m³/h

455Pa

250mm

500W

≤43dB(A)

48KG

100*52*30cm³

JCSLH-2000

220V

50Hz

2000m³/h

490Pa

250mm

550W

≤45dB(A)

50KG

100*52*30cm³

Taizhou Jiucang Electromechanical Co., Ltd.

Taizhou Jiucang Electromechanical Co., Ltd.

Jienengshi, the premium motor brand of Taizhou Jiucang Electromechanical Co., Ltd., operates under core principles of energy efficiency, environmental sustainability, and quality excellence. We specialize in the R&D and manufacturing of Purifying Type Two-Way Flow Blower, supported by an experienced engineering team with extensive expertise in core motor technologies for military and new energy vehicle applications.

As an OEM Purifying Type Two-Way Flow Blower manufacturers and a Custom Purifying Type Two-Way Flow Blower company, our industry-leading technological capabilities combine innovative vision with meticulous craftsmanship. Through advanced industrial design and precision manufacturing processes, we deliver reliable, maintenance-free motor solutions that ensure consistent performance. Moving forward, we remain committed to innovating Purifying Type Two-Way Flow Blower technology and building upon our technical leadership to achieve new milestones.
